Anchors

Wedge anchors, sleeve anchors, expansion bolts, drop-in anchors, chemical anchors and concrete screws — for structural fixing into concrete and masonry, in zinc plated, hot-dip galvanised and stainless steel versions.

Request a Quote Jump to Specifications

Product Range

Types of Anchors We Manufacture

Supplied loose, or as retail kits with drill bit, setting tool and instructions for your market.

01

Wedge Anchors

Standards: ANSI B18.29.1 (through-bolt), custom

Sizes: M6–M24, 1/4"–1", for heavy structural fixing in concrete

02

Sleeve Anchors

Types: Countersunk, hex nut, round head, flat head

Sizes: M6–M16, for medium-duty fastening into concrete and brick

03

Expansion Bolts

Types: Sleeve type, wedge type, nut-and-bolt type

Sizes: M6–M20, zinc or HDG, for pipe supports and handrails

04

Drop-In Anchors

Types: Internal thread, setting tool included

Sizes: M6–M16, for threaded rod suspension and shallow embedment

05

Chemical Anchors

Types: Cartridge, capsule and injectable systems

Sizes: M8–M24 with threaded rod, for cracked concrete and close-to-edge fixing

06

Concrete Screws

Types: Hex washer head, countersunk, torx drive

Sizes: 6.5–10 mm diameter, removable and re-usable in concrete

Specification Table

Typical Wedge Anchor Dimensions

Reference data for quotation. Drill diameter must match the anchor diameter for correct performance.

Anchor Size	Drill Dia. (mm)	Min. Embedment (mm)	Common Lengths (mm)	Approx. kg / 1000 pcs (75 mm)
M6	6.0	40	50 / 65 / 75 / 100	~40
M8	8.0	45	65 / 75 / 100 / 120	~75
M10	10.0	55	75 / 100 / 120 / 150	~130
M12	12.0	65	100 / 120 / 150 / 200	~210
M16	16.0	85	125 / 150 / 200 / 250	~390
M20	20.0	100	160 / 200 / 250 / 300	~660
M24	24.0	120	200 / 250 / 300 / 350	~1150

Working load values depend on concrete strength and edge distance. Consult our engineers for project-specific data.

Materials & Grade

Built for Load & Corrosion

Carbon steel class 4.8 / 5.8 — standard anchors for general fixing
Class 8.8 — high-strength wedge anchors for structural loads
Stainless A2 (304) — outdoor facades and wet areas
Stainless A4 (316) — swimming pools, tunnels and coastal projects
Zinc alloy body — drop-in anchors for interior use
Zinc-plated steel sleeve — standard sleeve anchor construction

Surface Finish

Finish Options

Clear zinc plating, Cr3+ RoHS compliant
Yellow zinc for improved corrosion resistance
Hot-dip galvanised to ISO 1461 for outdoor structures
Dacromet for long-term exterior exposure
Passivated finish for stainless steel anchors
Colour-coded head marking for size identification

Quality Assurance

Load & Durability Tested

Pull-out and shear load test in concrete test blocks
Tensile and proof load test to ISO 898-1
Hardness survey on anchor body and wedge clip
Thread gauging, 6g tolerance
Salt-spray test on plated anchors
Routine setting test to confirm clamping performance

Ordering & Kits

Retail Anchor Kits

Assorted box with 4–8 sizes, ideal for DIY retailers
Kit including masonry drill bit and setting tool
Printed instruction sheet in your language
Blister card with hanging hole and barcode
Colour box with your own brand and CE marking
Bulk carton for professional contractors

Ask About Anchor Kits

Real Photos From Our Factory

Recent Production Photos

Actual photographs of parts we have made for customers. See the full 107-photo gallery for more.

Black threaded rods, bundle packed

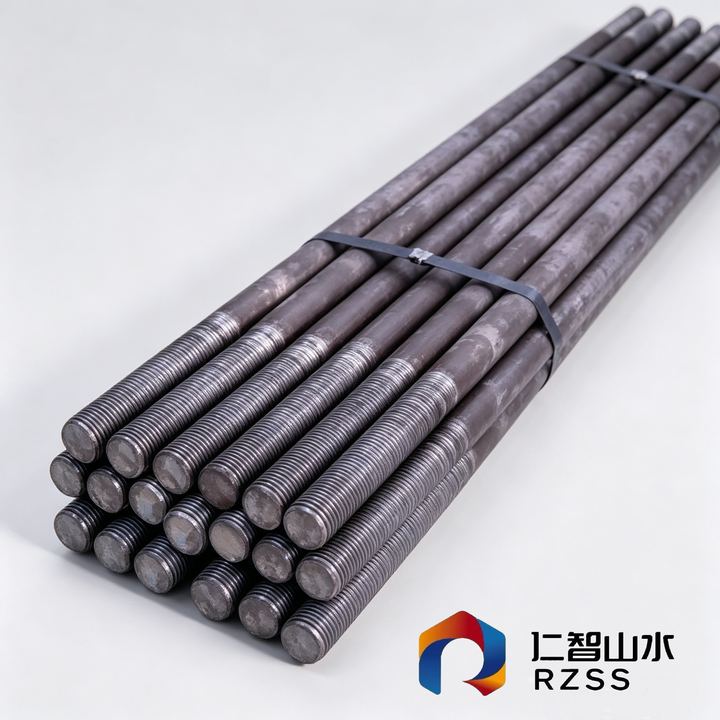

Threaded rods, bundle of 10

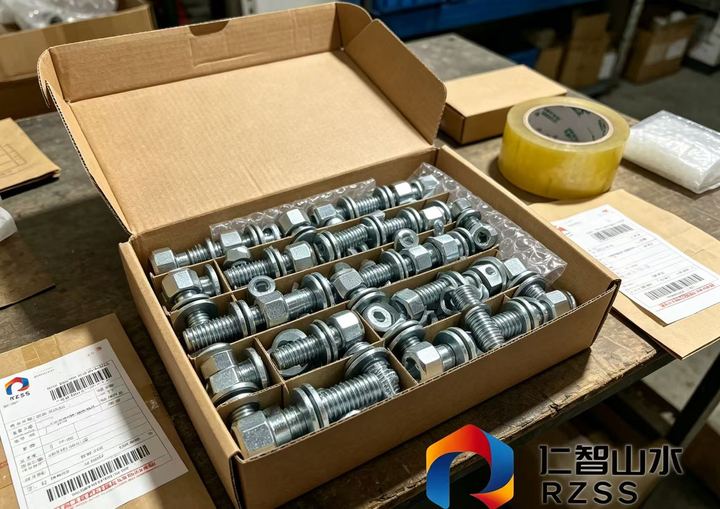

Flange bolts, boxed order

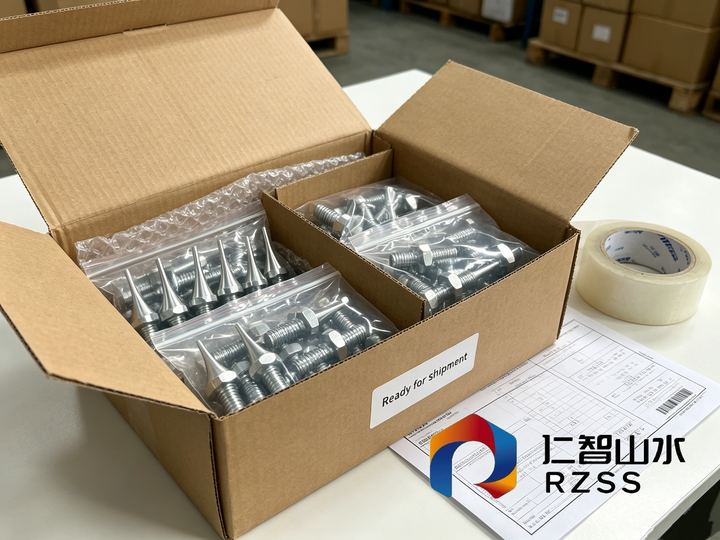

Assorted order, boxed

Assorted kits, packed

Double end studs

View All 107 Photos

Browse the complete gallery, filter by category and enlarge any photo.

Open Photo Gallery
